Rockwell's Arena simulation customer care

ReadMe

아래 내용은 Rockwell Automation 과의 원활한 소통을 위해 만들어진 자료이며 일정 기간 후 폐기됩니다.

History

2022/09/23

Question

Hi, I have some problem about reporting when EoS. In Arena, We could see a report to check KPI using Crystal report about 6 months ago. But I tried to reisntall Arena of latest version, and simulated same model.

I checked reporting message, clicked “yes”, I can see report on Excel (.xmls) My machine installed Crystal report in Arena installation folder, I want to switch report background module(Excel <-> Crystal report) Please tell me about switching report mode.

Answer

Hello Customer,

Please let me have more detailed information on your current issue (Screen shot or URL).

2022/09/26

Question

Hello, Customer care team member. You said you need detailed information such as screenshots or URL to understand my problem.

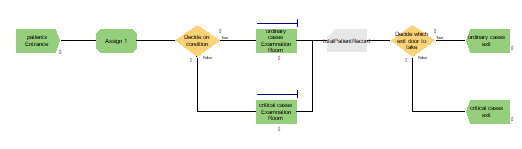

Set model I made just simple model(It doesn’t matter to you and me)

End of the simulation I can show a message about reporting this model. I clicked “예(Y)” means “Yes”

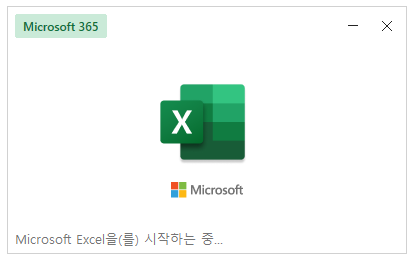

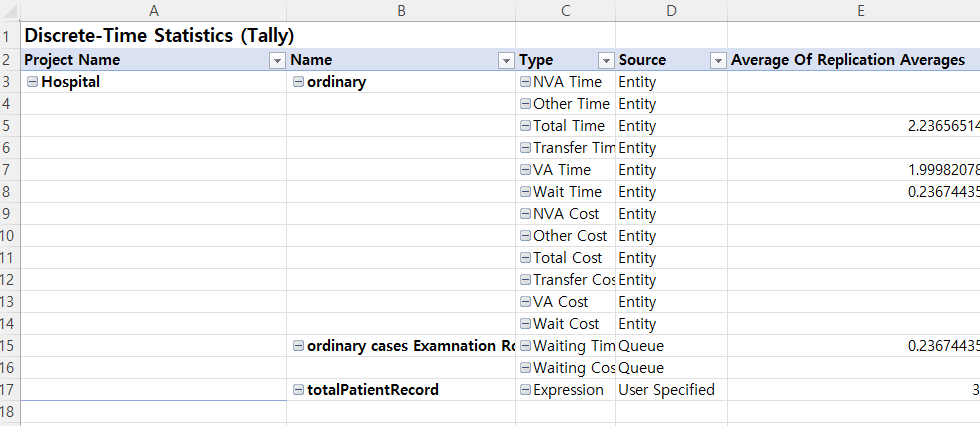

Report Beginning Excel program; Show report about this model. But I want to show the report using the Crystal report too. because I am used to analyzing values on the Crystal report. I know Rockwell changes report making method for some reasons. I’ll try to apply these update contents. however I want I can switch reporting option.
